OVERVIEW:

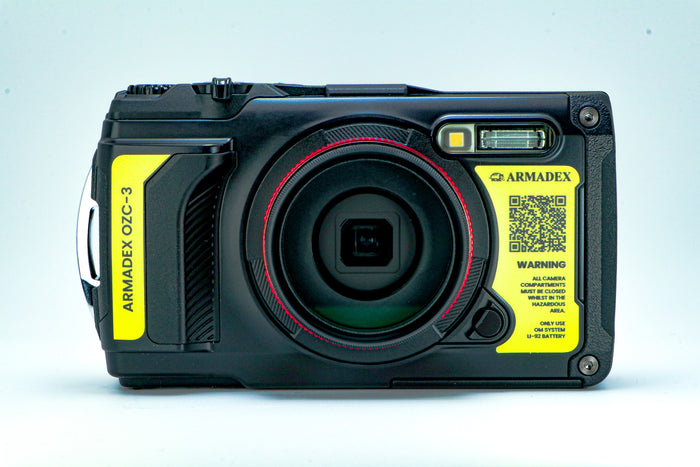

- 10m 35ft Reach RVI Camera Pole System and ATEX/IECEx Rugged Camera ARMADEX OZC 3 – for Oil & Gas / Hazardous Areas
-
Enables fast, stable, cost effective, HD video / 14 megapixel / 4 x lossless optical zoom Remote Visual Inspection up to 10.66m 35ft (if pole held at waist height) - WITHOUT SCAFFOLD / LIFTS / DRONES
- Contact Vantage Point Products if you have any questions about the 10m 35ft Reach RVI Camera Pole System - we ship worldwide using UPS. The RVI pole kit (not camera) ships direct from Vantage Point Products (UK)
- Contact Armadex (NL) if you have any questions about the ATEX/IECEx Rugged Camera ARMADEX OZC 3 kit - Armadex (NL) ships worldwide. The camera will ship direct from Armadex (NL) even if purchased via Vantage Point Products (UK).
- PLEASE NOTE - Intrinsically Safe (IS) smartphone / tablet not included in kit. Use your existing IS smartphone / tablet (Android / iOS), or contact Armadex (NL) to acquire an IS smartphone / tablet
SPECIFICATION:

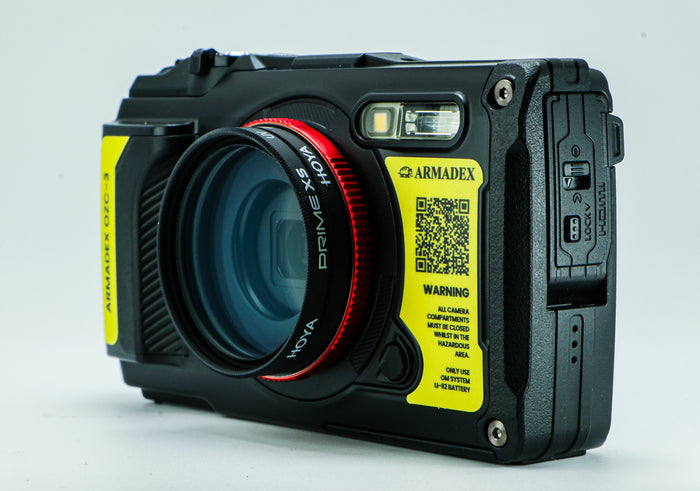

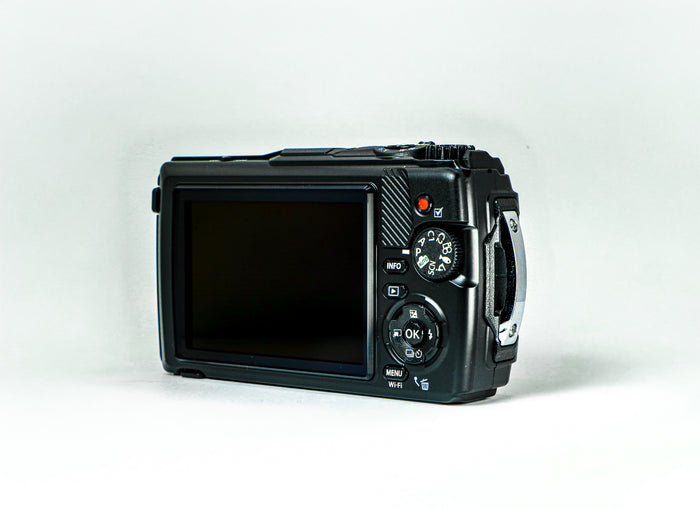

- Intrinsically Safe camera kit
- Datasheet - ATEX/IECEx Certified Camera - Camera is certified for ATEX/IECEx Zone 2 (Gas) and Zone 22 (Dust) ensuring it meets the strict safety standards required in explosive environments - such as FPSO’s, LNG Tankers, gas facilities, and chemical plants.
- PLEASE NOTE - Camera comes without the Xenon Flash, however the built-in LED light is fully operational.
- Completely wireless (camera self generating hotspot - not local Wi-Fi) remote control with remote live image feed - via free app on enabled IS handheld devices (iOS / Android) - IS smartphone / tablet not included in kit.
- Rugged compact camera (Dustproof, Waterproof 15m, Shock resistant 2.1m dropping from height)
- Imaging resolution 12 megapixel, HD / 4K video
- 4 x optical zoom - useful for imaging at a distance
- Weighs only 249g (inc. battery and SD card)

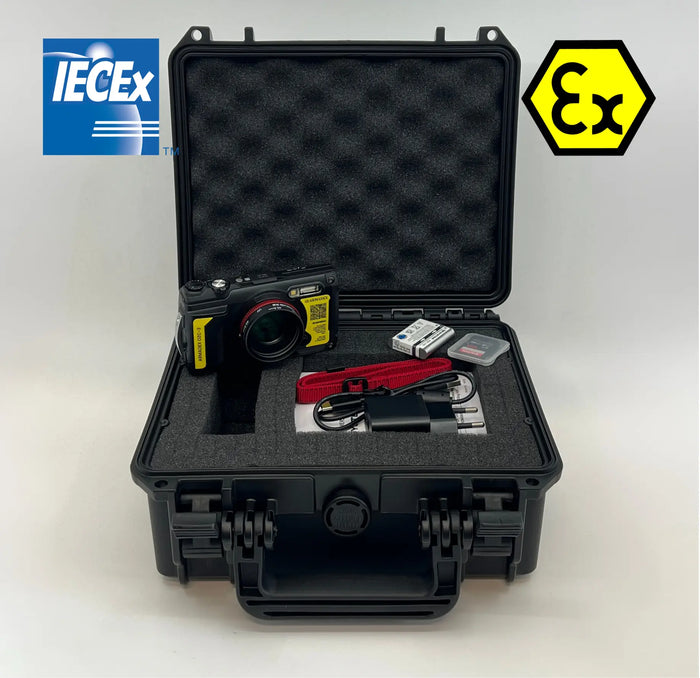

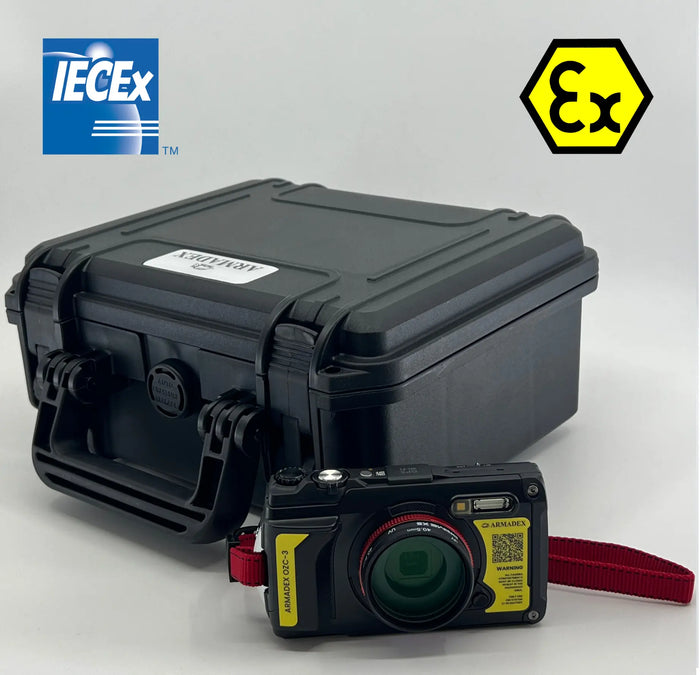

- Rugged carry case for camera and all associated small accessories
-
PLEASE NOTE - Intrinsically Safe (IS) smartphone / tablet not included in kit. Use your existing IS smartphone / tablet (Android / iOS), or contact Armadex (NL) to acquire an IS smartphone / tablet
- Pole kit
- High quality max standard modulus 100% carbon fibre pole - uniquely wide top mast tube OD to increase stability ay height under load during operation
- Extends to 33ft 10.08m (10.66m 35ft (if pole held at waist height)
- Retracts to only 1.61m - easy transport in vehicles and air plane hold transport (not carry on)
- Weighs less than 3.2kg - easy to carry to, from and on sites
- Recommended max camera payload at max extension 1.5kg (ideally less)
- CNC cut aluminium camera mount with stainless steel 1/4"-20 male screw to suit all cameras
- Fully adjustable, hands-free smartphone mount at eye-level for remote camera control and live image feed
- Ball tilt camera head for (pre-extension) viewing angle setting.
- 190cm padded carry bag - reduces wear and tear in transit and on site
- PLEASE NOTE - Telescopic RVI pole is not IS certified - but it is made of 100% max standard modulus carbon fibre - conducts electricity (static dissipation) - so avoid contact with or proximity to assets capable of transferring electrical energy to the operator or other equipment.
- PLEASE NOTE - Camera mount at top of RVI pole is a wide aluminium mounting plate with a stainless steel 1/4"-20 screw (before metal ball tilt head). Adjustable smartphone mount and hands-free grip arm is made of plastic.
WHAT DO YOU GET?
- Pole kit includes
- 1 x 10.08m 33ft tall 100% carbon fibre pole survey pole
- 1 x Camera mount with ball tilt head
- 1 x Smartphone mount
- 1 x 190cm padded carry bag
- 1 x One year warranty

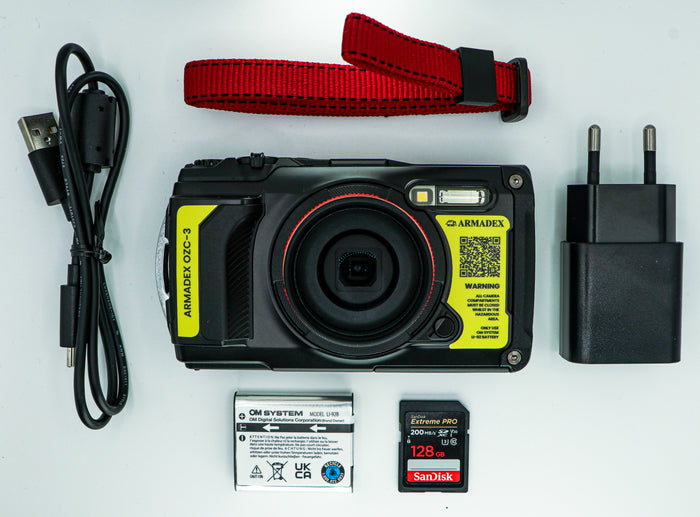

- Camera kit includes (IF SELECTED)
- 1 x Rugged, remote controllable compact camera, with lanyard
- 1 x 128GB SD memory card
- 2 x Spare batteries + USB charger (+ 1 x battery already inside camera)
- 1 x Carry case for camera and case lanyard
- 1 x Free remote control camera app for iOS / Android devices
WHAT DO YOU NOT GET?
- PLEASE NOTE - Intrinsically Safe (IS) smartphone / tablet not included in kit. Use your existing IS smartphone / tablet (Android / iOS), or contact Armadex (NL) to acquire an IS smartphone / tablet
