OVERVIEW:
- 6m 9m 12m Tall Mast Tripod for Aerial Reality Capture by DSLR BLK360 LiDAR SLAM
- Achieve elevated imaging scans without using a drone, MEWP lift, scaffold or a heavy pneumatic metal mast tripod
- Works with your existing remote controllable Reality Capture device (NOT SUPPLIED)
- As used by Reality Capture experts including, but not limited to: Quixel Sweden, Epic Games (USA / UK / EU), CD Projekt Red (Poland), Apollo 3D (UK).
SPECIFICATION:
- (SELECT HEIGHT) 20ft 6.1m / 30ft 9.25m or 40ft / 12.2m
- (SELECT SET UP) Designed to function without and with the tripod attached
- Without tripod is best for quickly moving spot to spot in difficult to reach areas and to insert the imaging hardware into recesses
- With detachable tripod is best set up for maximum vertical elevation (guy lines recommended but not supplied)
- Easy to carry and transport - retracts to only 1.73m (6.1m) / 1.80m (9.25m) / 1.87m (12.2m)
- Strong, rigid yet lightweight high modulus carbon fibre telescopic masts with aluminium tripod - all kits weigh less than 6.5kg total
- Max Payload for 20ft 6.1m = 7.5kg at 6.1m (indoors), 9.5kg at 4.5-5m (partial top sections extension - indoors), 6kg at 6.1m (outdoors - in light winds - always guyed)
- Max Payload for 30ft 9.25m = 3.5kg at 9.25m (indoors), 5.5kg at 7.5-8m (partial top sections extension - indoors), 3kg at 9.25m (outdoors - in light winds - always guyed)
- Max Payload for 40ft 12.2m = 2kg at 12.2m (indoors), 4.5kg at 10.5-11m (partial top sections extension - indoors), 2kg at 12m (outdoors - in light winds - always guyed)
WHAT DO YOU GET?

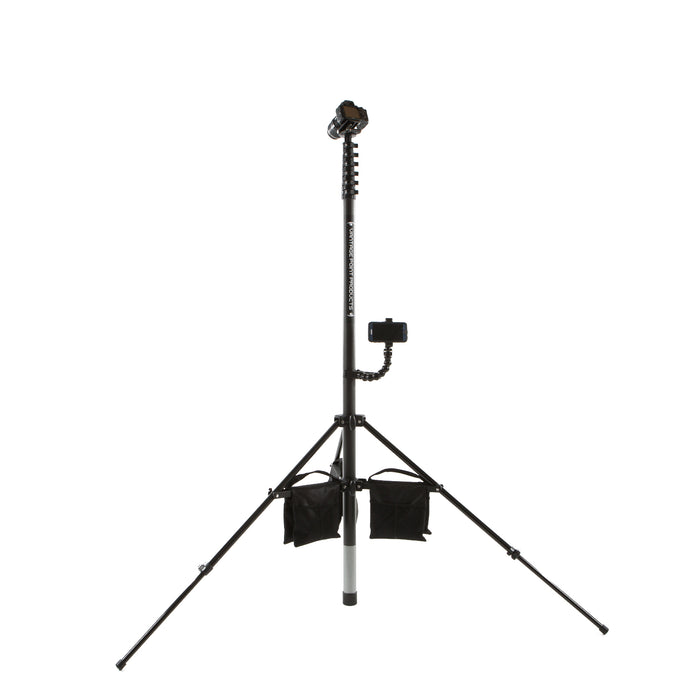

- 1 x (SELECT HEIGHT) 20ft 6.1m / 30ft 9.25m / 40ft 12.2m telescopic high modulus and 3K carbon fibre mast
- 1 x (SELECT SET UP) Strong aluminium tripod with telescopic legs and 3 x (empty) tripod leg weights bags

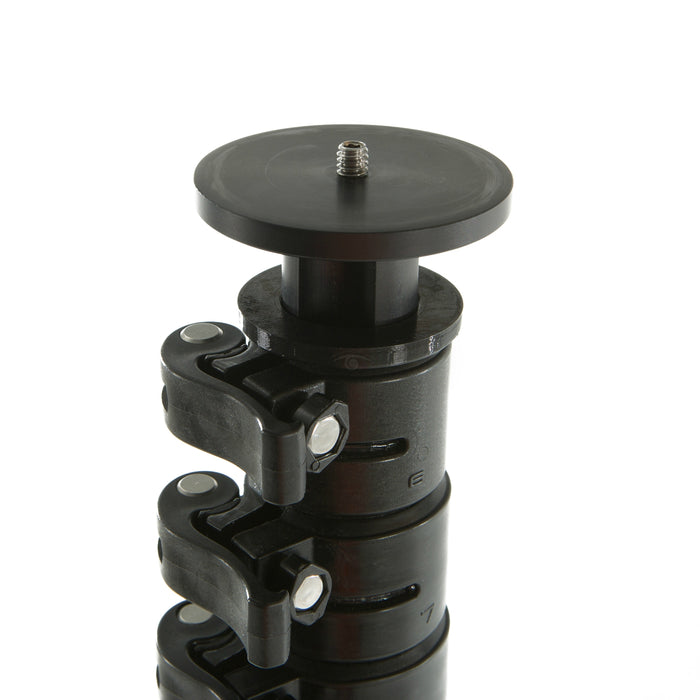

- 1 x Aluminium camera mount plate with universal male 1/4"-20 stainless steel screw mount
- 1 x Ball tilt head for pre-setting camera viewing angles
- 1 x Secure, adjustable universal smartphone mount for eye-level viewing of remote image feed from your existing Wi-Fi app / wired remote controllable Reality Capture device (NOT SUPPLIED)
- 1 x 190cm padded carry bag
- Free UK mainland shipping. We ship internationally using UPS - provide your address
- Comprehensive user guide and manual, as well as customer support
- 12 month warranty
BEFORE PURCHASE - email us and provide details of the make and model of Reality Capture device you already use - we will check for functionality for remote control, compatibility, payload, height that can safely be reached - and we will provide operational advice.
free uk mainland shipping on all orders over £100
We also ship internationally via UPS.
For our full Shipping, Customs and Delivery information, please go to the About Us section of our website.
Shipping charges and delivery timescales
Vantage Point Products ship our products worldwide using UPS secure, tracked, signed for methods.
UK Shipping Charges
For orders over £100 (Ex VAT) we offer UK mainland shipping via UPS (secure, tracked and signed for) without charge.
For orders under £100 (Ex VAT), we will issue a shipping quote to charge the customer either for UPS shipping (secure, tracked and signed for), or Royal Mail (tracked and signed for), so that we only charge what is reasonable (usually for smaller items, i.e. mounts or bags).
Our masts are classed by UPS as items that require additional handling (the average box length is 200cm).
International Shipping charges (non UK mainland)
For orders to be shipped outside of the UK, please add your items to the cart and enter your shipping address to see the UPS shipping charges (applicable to most countries we ship to).
If your country is not shown, please contact us and we will acquire a quote from UPS and inform you of these costs.
This shipping charge is on the basis of a single unit order (i.e. 1 x tripod mast system and accessories per box), and you should contact us if you wish to purchase multiple units as we will then be able to plan the shipments to minimise charges as far as possible (i.e. several systems in one box).
Examples of average UPS shipping timescales
• UK mainland: 2 working days
• UK to Europe: 2-5 working days (dependent on region)
• UK to USA or Canada: 5-7 working days
• UK to Australia: 7-10 working days
Please note - if you have a specific deadline to meet to receive the goods, please contact us in advance of placing and paying for your order, so that Vantage Point Products can set aside the time required to assemble, quality test and dispatch the goods to meet these delivery timescales:
• Telephone: UK +44 (0) 2380 982 366 • Email: help@vantagepointproducts.comSAFETY
Warning! The quality 100% carbon fibre we use conducts electricity – do not use in weather capable of generating electrical storms and lightning, and do not use near power lines or infrastructure capable of generating or transferring dangerous electrical energy to the operator or those nearby, or any hardware mounted our on carbon fibre mast tripods.
Vantage Point products email a user guide with every telescopic carbon fibre mast tripod we supply, so that the operator can gain the most benefit from our products in terms of safety, operation and maintenance. The user guide can also be sent to the customer pre-purchase, so they can review it and plan for safe, efficient use in the field.
We also provide extensive customer support before and after purchase, to ensure the operator will be able to use our products safely and to the full from day of delivery.
WARRANTY
Warranty for products both made and supplied by Vantage Point Products:
All products made and supplied by Vantage Point Products are provided with a 12 month warranty covering the safe, recommended use of our products.
Neither Vantage Point Products nor its operators will be liable for any normal wear and tear, overloading, accidental or deliberate damage, including but not limited to exposure to wet weather and impact, and injury and damage to persons, property or equipment that may occur during use of our products.
Warranty for products sourced by Vantage Point Products from an external supplier:
Vantage Point Products work closely with a variety of high quality innovative hardware and accessory manufacturers, distributors, and specialists.
Vantage Point Products may purchase, stock and provide the customer with a product that has been sourced from an approved supplier in the UK or another country of origin.
If so, the terms of the manufacturer’s warranty apply, and is transferable to any customer Vantage Point Products may supply (i.e. a Sony camera bought by Vantage Point Products in the UK, and supplied to a customer as part of our aerial imaging mast systems or camera pole systems).
The manufacturer’s warranty may carry limitations based on the country the product was sourced from (i.e. the UK) and the country the product is used in when any fault is reported (i.e. outside the UK and Europe). For instance, a Sony product bought in the UK carries a Sony UK and European warranty, which does not apply if the product is shipped to and used in a country outside of that region.
In order for the customer to have a product warranty that covers their geographic region of operation, Vantage Point Product can refer them to an approved supplier and brand representative in their country through which the customer can purchase that product with a binding local warranty and repair service.
