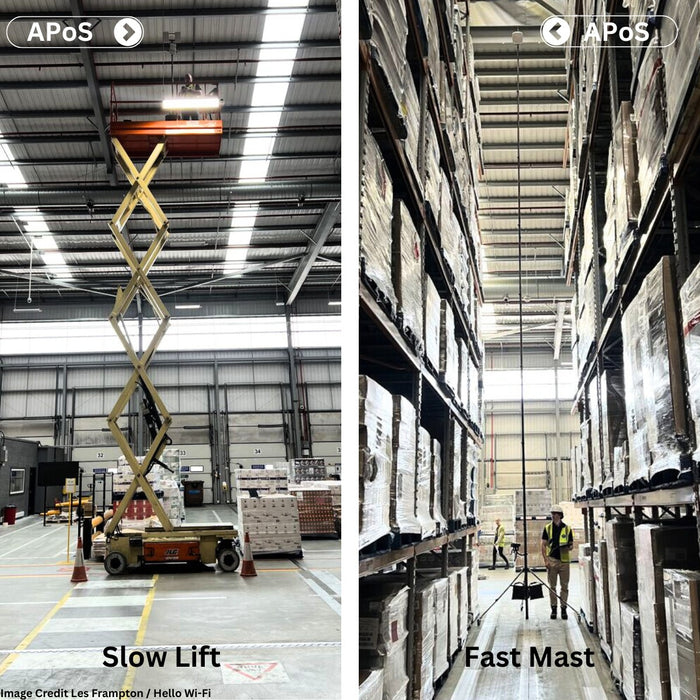

- Our UK made 20ft, 30ft and 40ft industrial grade carbon fibre masts and aluminium tripods are used by professional Wi-Fi engineers to quickly, safely and profitably carry out high reach warehouse and factory pre-deployment active Wi-Fi AP surveys - without using a scaffold, sky jack or mobile elevated work platform.
- Wi-Fi engineers that use our product are saving time and money, while increasing the speed and profitability of every warehouse and factory Wi-Fi site survey.

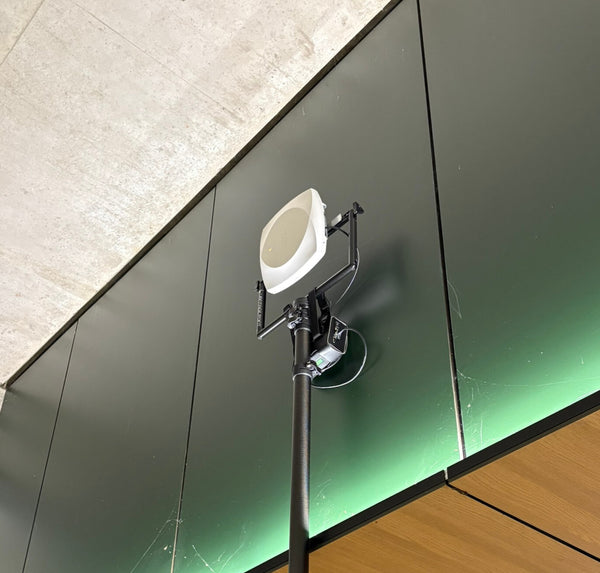

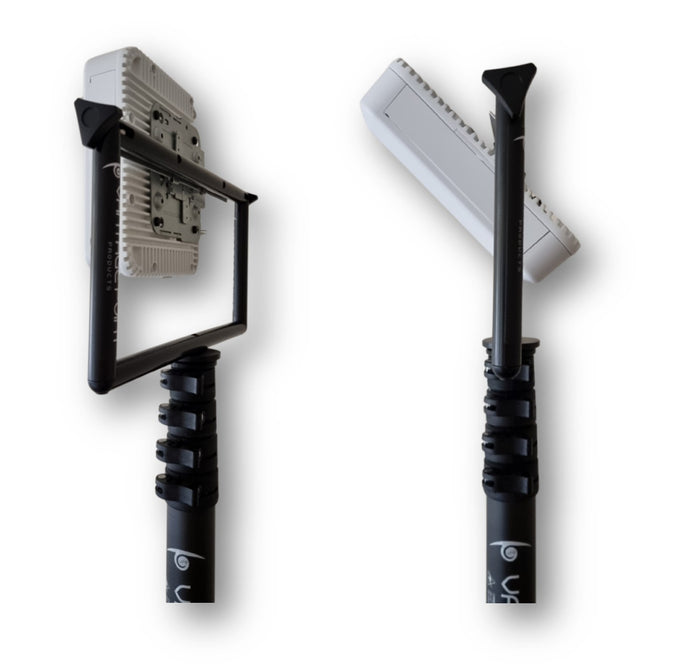

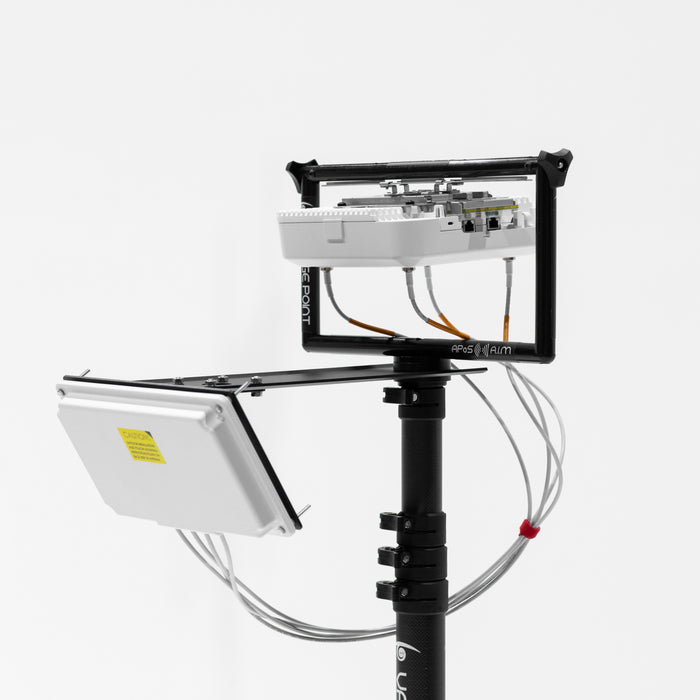

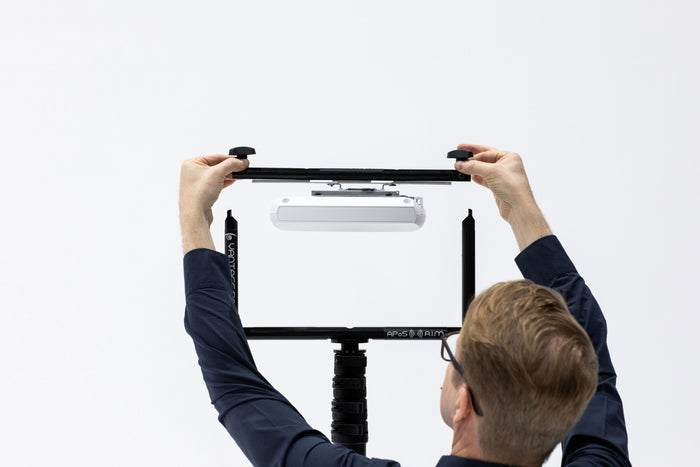

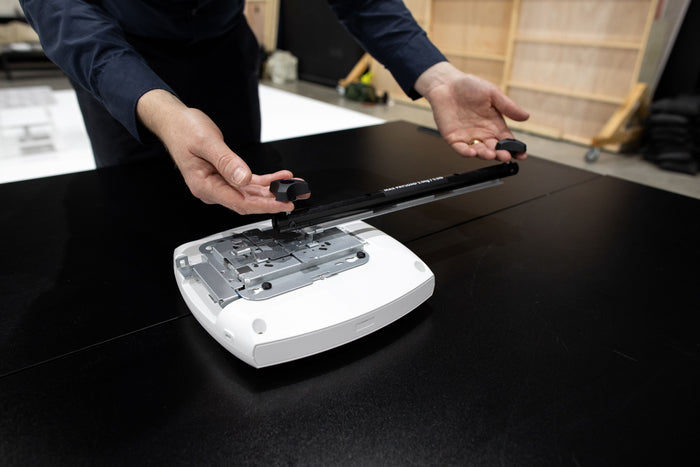

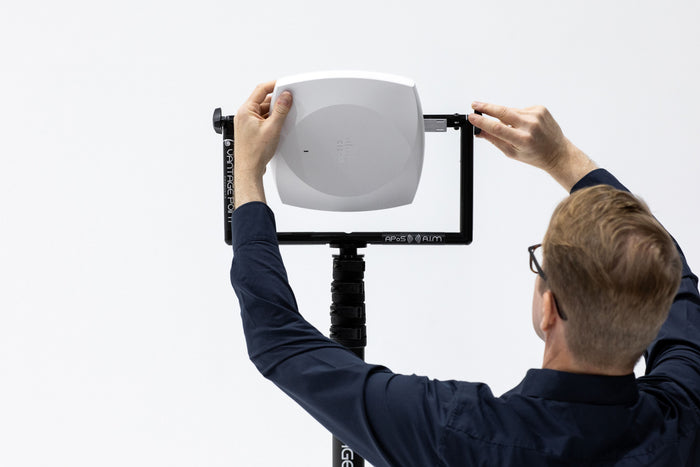

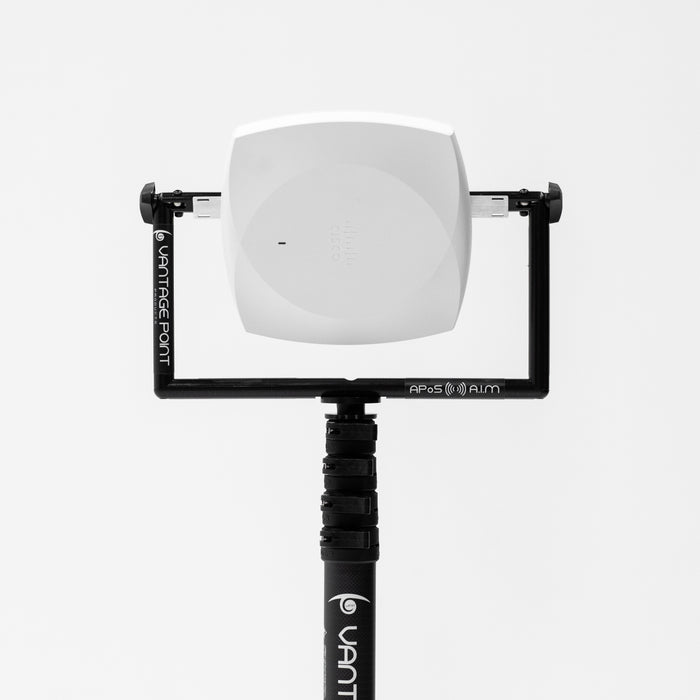

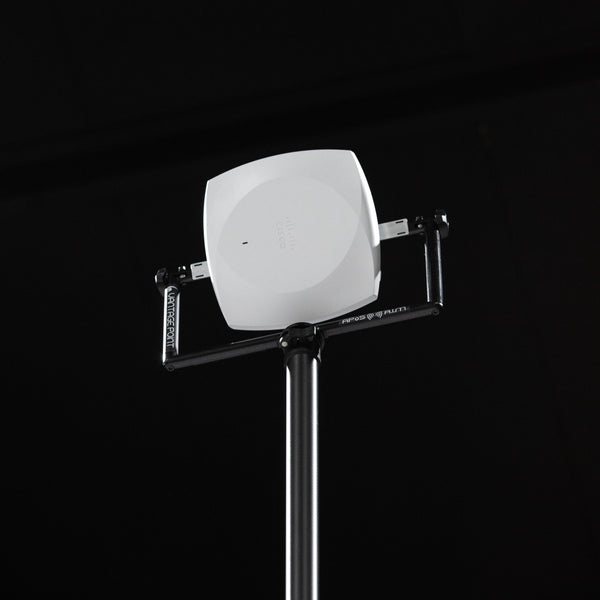

- We source an industry renowned, highly trusted, quality US made universal AP mounting solution that is compatible with an extensive range of manufacturer's AP's including (but not limited to) Aerohive, Cisco, Meraki, Ruckus and Ubiquiti.
- Our masts don't wobble. They are made from industrial grade high modulus carbon fibre which is essential for safe and stable elevation of WiFi AP's and antennas, without the excessive flex and sway at full extension that is all too common with telescopic aluminium, glass fibre or poor quality low modulus carbon fibre mast systems.

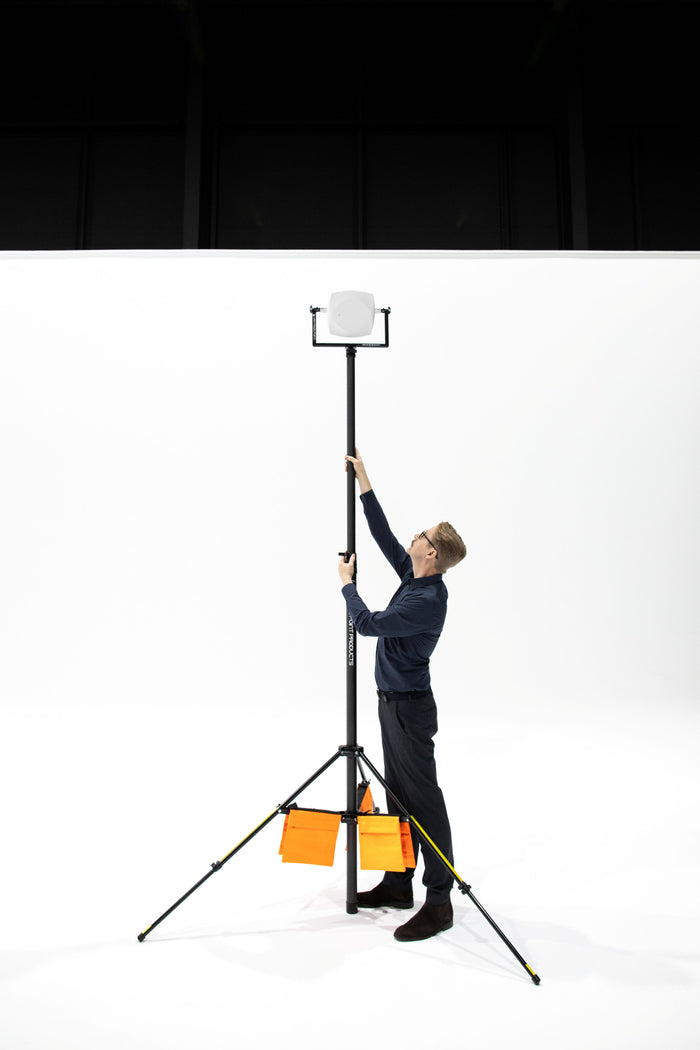

- Easily move our mast and tripod system from position to position on location, setting up inside and outside the building being surveyed. Includes 190 cm padded weather resistant carry bag. Wheeled castors with brakes can be added, but are not always required due to the lightweight and portability of the entire system.
- By using our unique mast and tripod system a professional Wi-Fi engineer can save time and money per site survey, as well as increasing the planning accuracy and optimising the performance of the final Wi-Fi AP deployment.
Please email us directly at email@example.com or call +44 (0) 23 8098 2366 to confirm that your AP and Antenna makes and models are suitable for use at height. We reply within 24 hours, usually much quicker. Our motto is Safety Before Sales, so please help us help you.
- 20ft / 6.1m / two storey mast - 7.5kg max payload at 6m (indoors), 9.5kg payload at 4.5-5m (partial top sections extension - indoors), 6kg payload at 6m (outdoors - in light winds - guyed) - 1.73m retracted, only weighs 4.7kg with tripod
- 30ft / 9.25m / three storey mast - 3.5kg max payload at 9m (indoors), 5.5kg payload at 7.5-8m (partial top sections extension - indoors), 3kg payload 9m (outdoors - in light winds - guyed) - 1.80m retracted, only weighs 5.5kg with tripod

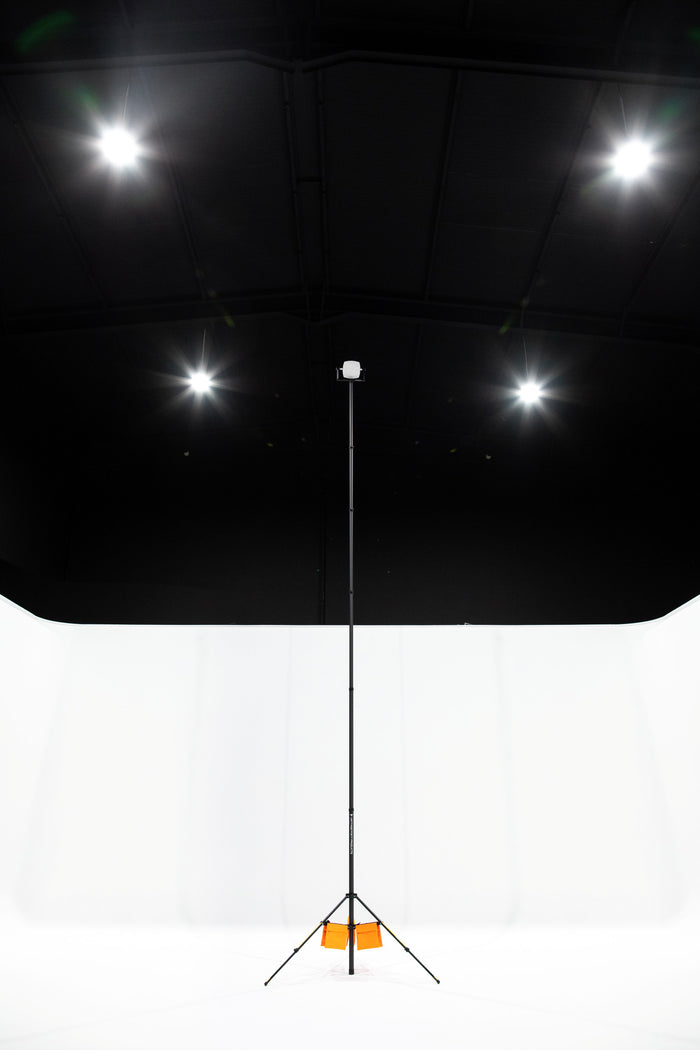

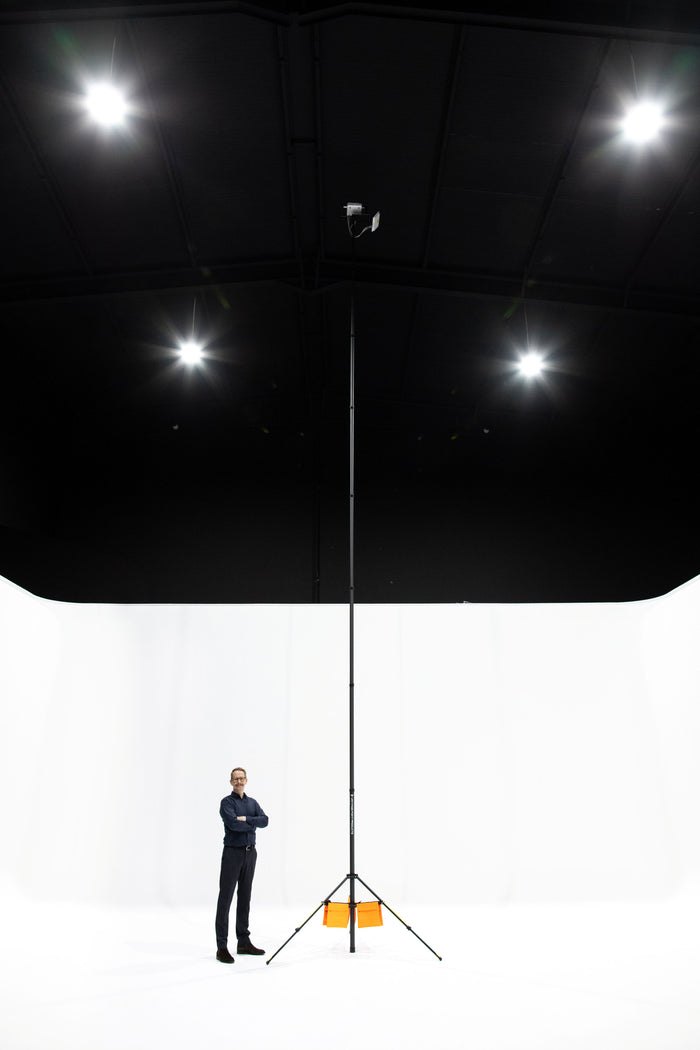

- 40ft / 12.2m / four storey mast - 2kg max payload at 12m (indoors), 4.5kg payload at 10.5-11m (partial top sections extension - indoors), 2kg payload at 12m (outdoors - in light winds - guyed) - 1.87m retracted - only weighs 6.2kg with tripod
What do you get?
- Free UK Mainland shipping with UPS - we ship worldwide!
- Use the product option tabs above to select which height of mast, the size of AP bracket you require (check AP compatibility here)

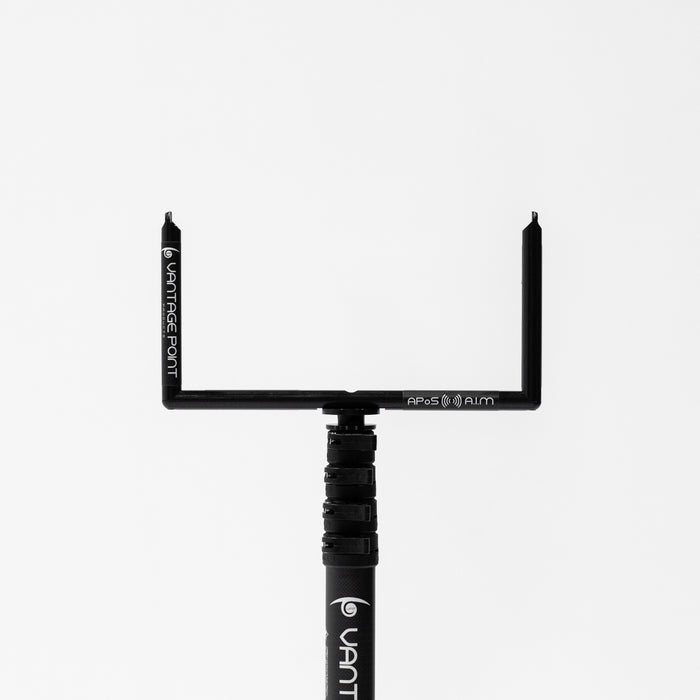

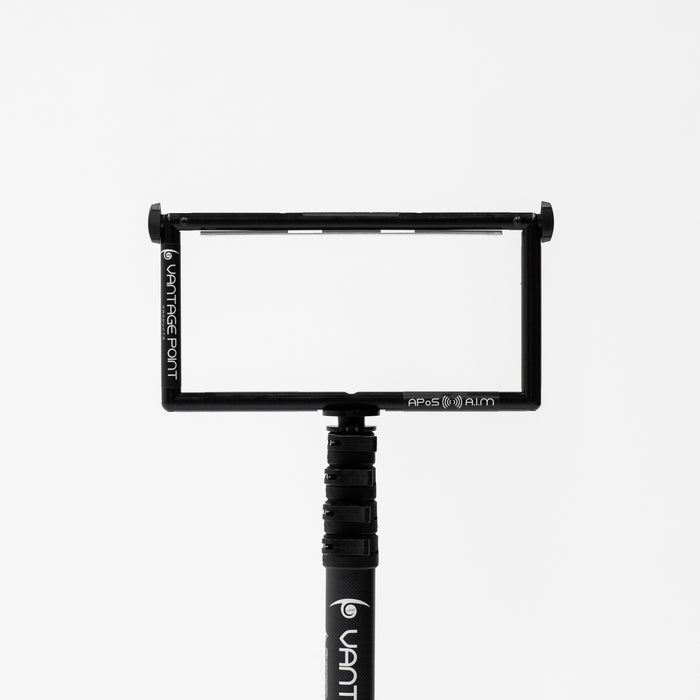

- One CNC aluminium and stainless steel screw mount and base plate, to connect the mast to the AP mounting bracket
- A set of 3 tripod leg weight bags for added stability (sold empty, but easily filled with dry sand by customer)
- Weather resistant padded carry bag (190cm long), suitable for vehicle and air plane hold transport
- Comprehensive user guide and manual
- 12 month warranty
- The AP, antenna or any cables, power supply or associated data power hardware
- Spectrum analyser and site survey heatmap software
Need more information?
- Have a look at this article on how to WiFi APoS survey a 12m 40ft warehouse factory with a tall mast for more information about this solution
- Check that your existing AP's weight is compatible with our masts here

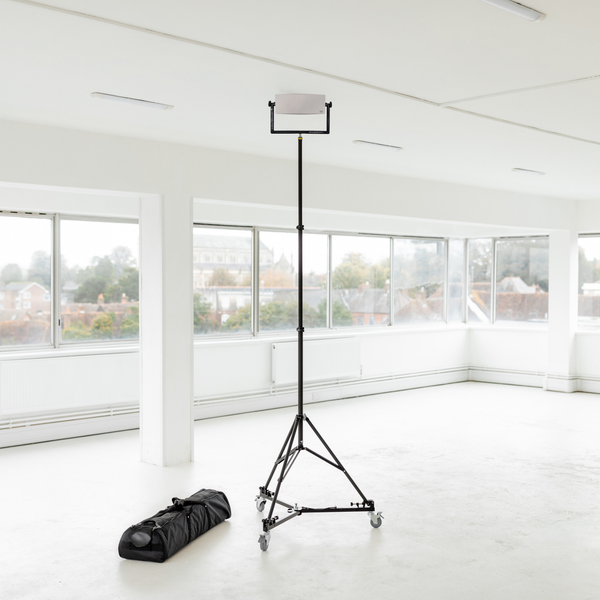

- Do you require something shorter? Have a look at our 12ft to 16ft Wi-Fi APoS mast for office, hotel and school site surveys
If you have a tight deadline or are ordering from outside the UK, it will be worth taking a look at our shipping and delivery information or contacting us prior to purchase so that we can help you plan for success.
We are always happy to help! Contact us using our online form and we will reply within the day (usually within 2 hours!). Or you can speak directly to Tom on +44 (0) 23 8098 2366 or email firstname.lastname@example.org
free uk mainland shipping on all orders over £100
We also ship internationally via UPS.
For our full Shipping, Customs and Delivery information, please go to the About Us section of our website.
Shipping charges and delivery timescales
Vantage Point Products ship our products worldwide using UPS secure, tracked, signed for methods.
UK Shipping Charges
For orders over £100 (Ex VAT) we offer UK mainland shipping via UPS (secure, tracked and signed for) without charge.
For orders under £100 (Ex VAT), we will issue a shipping quote to charge the customer either for UPS shipping (secure, tracked and signed for), or Royal Mail (tracked and signed for), so that we only charge what is reasonable (usually for smaller items, i.e. mounts or bags).
Our masts are classed by UPS as items that require additional handling (the average box length is 200cm).
International Shipping charges (non UK mainland)
For orders to be shipped outside of the UK, please add your items to the cart and enter your shipping address to see the UPS shipping charges (applicable to most countries we ship to).
If your country is not shown, please contact us and we will acquire a quote from UPS and inform you of these costs.
This shipping charge is on the basis of a single unit order (i.e. 1 x tripod mast system and accessories per box), and you should contact us if you wish to purchase multiple units as we will then be able to plan the shipments to minimise charges as far as possible (i.e. several systems in one box).
Examples of average UPS shipping timescales
• UK mainland: 2 working days
• UK to Europe: 2-5 working days (dependent on region)
• UK to USA or Canada: 5-7 working days
• UK to Australia: 7-10 working days
Please note - if you have a specific deadline to meet to receive the goods, please contact us in advance of placing and paying for your order, so that Vantage Point Products can set aside the time required to assemble, quality test and dispatch the goods to meet these delivery timescales:• Telephone: UK +44 (0) 2380 982 366 • Email: email@example.com
Warning! The quality 100% carbon fibre we use conducts electricity – do not use in weather capable of generating electrical storms and lightning, and do not use near power lines or infrastructure capable of generating or transferring dangerous electrical energy to the operator or those nearby, or any hardware mounted our on carbon fibre mast tripods.
Vantage Point products email a user guide with every telescopic carbon fibre mast tripod we supply, so that the operator can gain the most benefit from our products in terms of safety, operation and maintenance. The user guide can also be sent to the customer pre-purchase, so they can review it and plan for safe, efficient use in the field.
We also provide extensive customer support before and after purchase, to ensure the operator will be able to use our products safely and to the full from day of delivery.
Warranty for products both made and supplied by Vantage Point Products:
All products made and supplied by Vantage Point Products are provided with a 12 month warranty covering the safe, recommended use of our products.
Neither Vantage Point Products nor its operators will be liable for any normal wear and tear, overloading, accidental or deliberate damage, including but not limited to exposure to wet weather and impact, and injury and damage to persons, property or equipment that may occur during use of our products.
Warranty for products sourced by Vantage Point Products from an external supplier:
Vantage Point Products work closely with a variety of high quality innovative hardware and accessory manufacturers, distributors, and specialists.
Vantage Point Products may purchase, stock and provide the customer with a product that has been sourced from an approved supplier in the UK or another country of origin.
If so, the terms of the manufacturer’s warranty apply, and is transferable to any customer Vantage Point Products may supply (i.e. a Sony camera bought by Vantage Point Products in the UK, and supplied to a customer as part of our aerial imaging mast systems or camera pole systems).
The manufacturer’s warranty may carry limitations based on the country the product was sourced from (i.e. the UK) and the country the product is used in when any fault is reported (i.e. outside the UK and Europe). For instance, a Sony product bought in the UK carries a Sony UK and European warranty, which does not apply if the product is shipped to and used in a country outside of that region.
In order for the customer to have a product warranty that covers their geographic region of operation, Vantage Point Product can refer them to an approved supplier and brand representative in their country through which the customer can purchase that product with a binding local warranty and repair service.
FOR OUR FULL WARRANTY TERMS AND CONDITIONS, PLEASE SEE THE “ABOUT US” SECTION.
